EZ - 930 Electronic Optional Remote Door Knob Latchbolt Lock
Keyless, Keypad, Combination Entry Door Latchbolt Lock
with Key Override
OUR FIRST ELECTRONIC LOCK! This lock is very affordable and works just about everywhere. People use it in their homes, apartments, town homes, condos, and throughout their businesses. They can be installed on any hinged door or cabinet that is thick enough to accommodate the deadbolt which moves in/out through a hole in the door when it is locked or unlocked.
Advantages
-
Easy installation on standard doors.
-
The first time you change the combination, this lock will pay for itself by saving the cost of a locksmith.
-
Completely weatherproof finishes.
-
Comes with a Manufacturer's 1-Year Warranty.
|
Need a Paper Copy?
Click to view or print
details, dimensions, & installation instructions:
|
|
|
|
|
|
|
EZ-930
Outside Lock Body
Bright Brass
|
Lock Features
-
Ability to program and change
4-10 digit codes with the touch of a button
-
6 user codes
-
LED illuminated key pad
-
Auto-stop function
-
Audible and visual confirmations
-
Auto-locking function improves
security and convenience
-
Battery powered
-
EZ Remote Control Option with a range of
approximately 20 feet with no obstructions
-
Easy to install
-
Schlage keyway
-
Auto latch bolt locking detection
prevents incomplete door locking
-
Fits regular door preparation (2 1/8")
-
One master code for set up
-
User codes can be temporarily
disabled
-
Codes can be deleted individually or all at once
-
Able to restore default setting when
user codes are forgotten
-
Low battery indicator equipped and
low power consumption
-
Adjustable; works on right or left handed doors
-
Takes (4) AA batteries
-
Temperature -4°F to 185°F
-
Door thickness 1-3/8" to 1-3/4"
|
|
EZ-930
Inside Lock Body
Bright Brass
|
|
EZ-930 with Optional Remote Control
|
Installation
Locking and Unlocking
From the outside, it can be unlocked by key or by a user code. From the inside, simply turn the thumb piece. To lock the door, use the key or press the "E-Digital" button on the keypad on the outside. From the inside, simply turn the thumbpiece.
This lock comes with a special Auto-Locking Function. When enabled, the lock will lock itself within 10-99 seconds after shutting the door. Unlock as normal. This function must be programmed and can be activated or deactivated at any time.

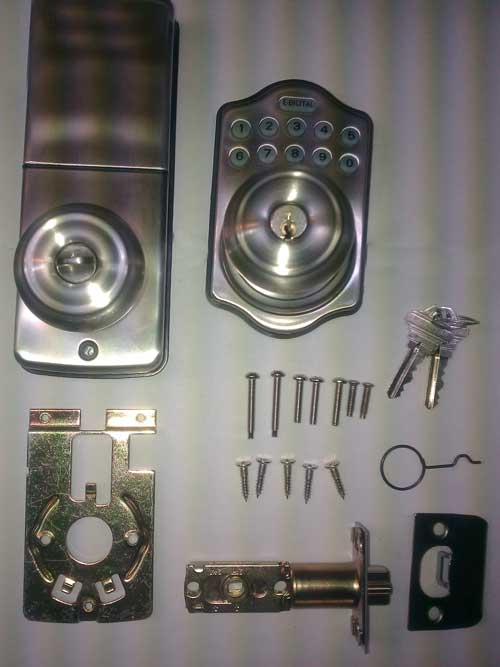

What's in the Box?
Elegant Lock Finishes
Our locks also have a new 7-coat finish, heavy duty zinc alloy, stainless steel and brass components and new, changeable brass combination pins. There are many beautiful finishes (subject to availability) to complement a luxury home, modern office, or stylish garden gate:
-
Antique Brass
-
Bright Brass
-
Bright Chrome
-
Jet Black
-
Red
-
Satin Chrome
-
Satin Nickel
-
White
|
|
EZ-930 Lock Dimensions
Outside
Lock Body with Knob |
Height:
|
5 in
|
|
Width:
|
3 in
|
|
Depth:
|
2-9/16 in
|
Inside
Lock Body with Knob |
Height:
|
7-1/8 in
|
|
Width:
|
2-7/8 in
|
|
Depth:
|
3-1/8 in
|
Additional Notes:
-
The bore hole should be between 1 inch to 2-1/8 inches.
EZ-930 Electronic Optional Remote Door Knob Latchbolt Lock
Keyless, Key Pad, Combination Entry Door Latchbolt Lock
with Key Override
Please choose the options you want, then click ADD TO CART below:
Satin Nickel - Special Order
2-3/4in
